CoreTech Core Tray
Description
Setting the Benchmark for Geotechnical Core Storage, WHS-compliant at 1050mm
CoreTech is the most advanced product range available to the geotechnical drilling industry, combining intelligent design, superior durability, and a genuine commitment to sustainability, CoreTech is redefining the standard for core storage and handling.
Unmatched Ergonomics

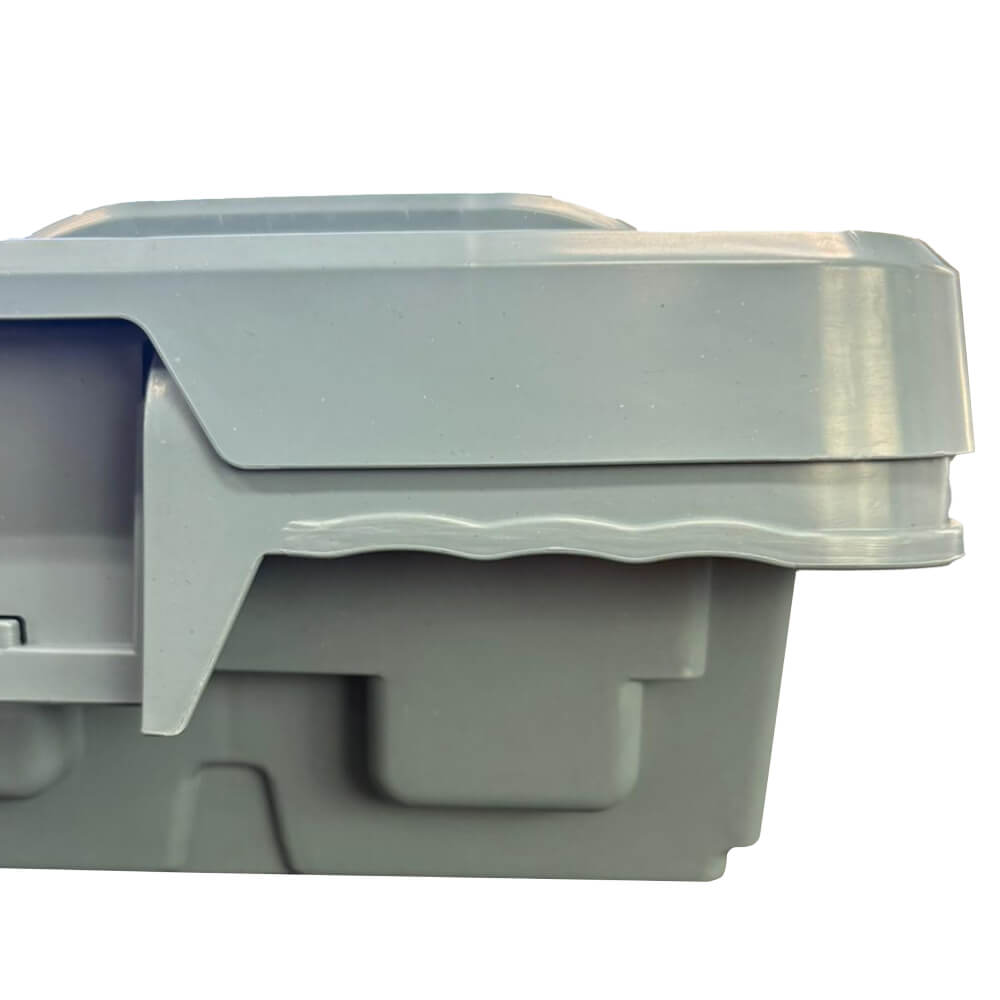

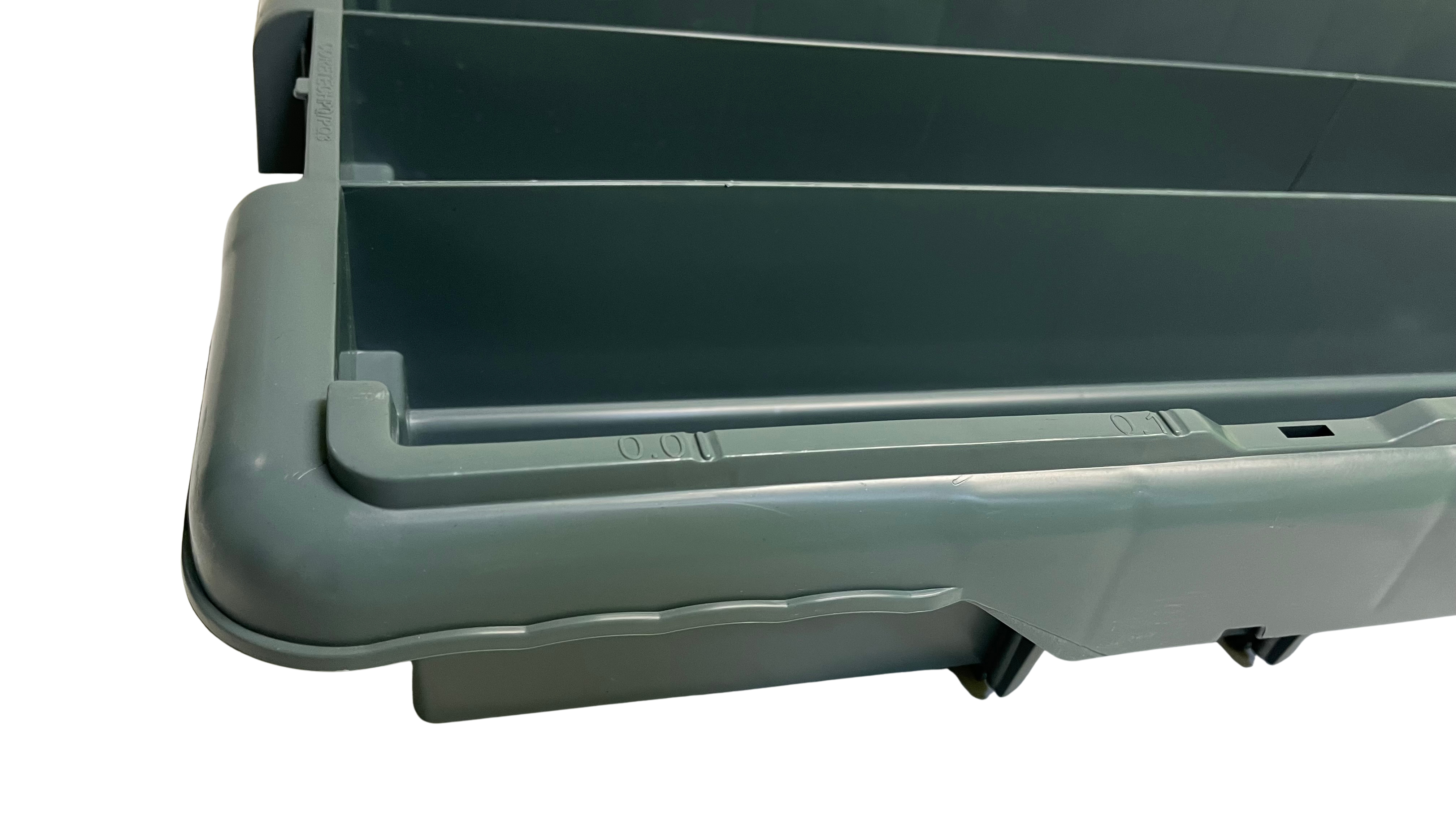

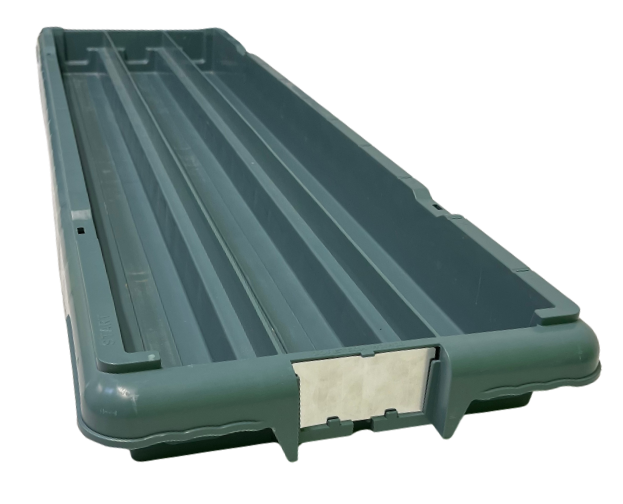

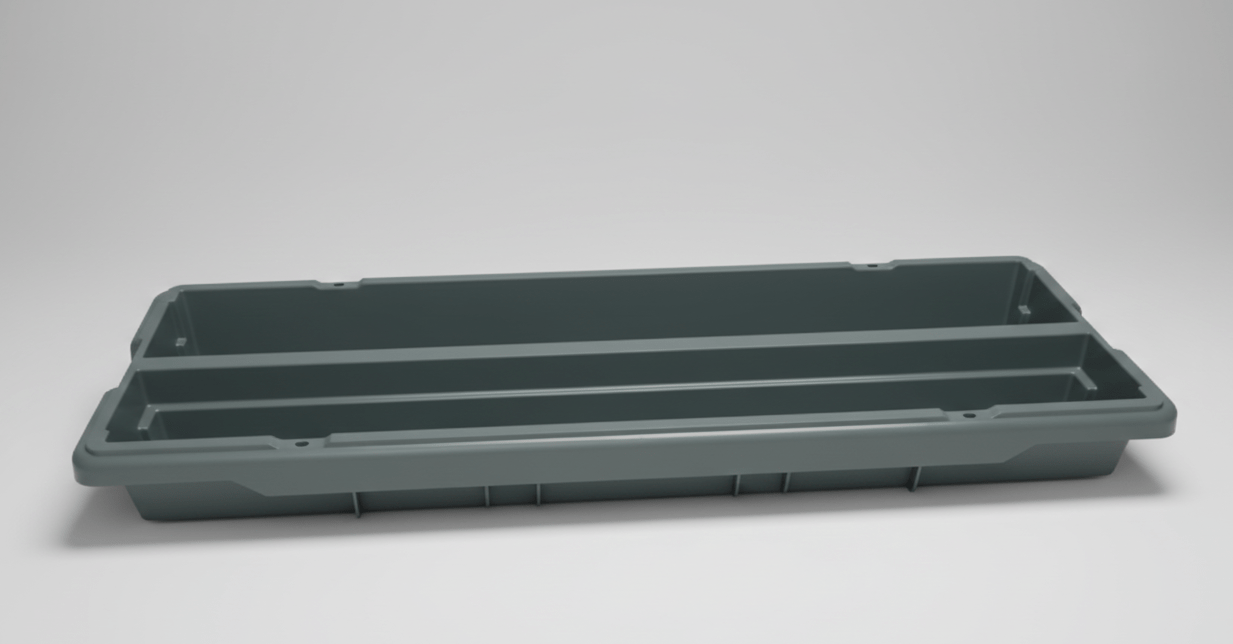

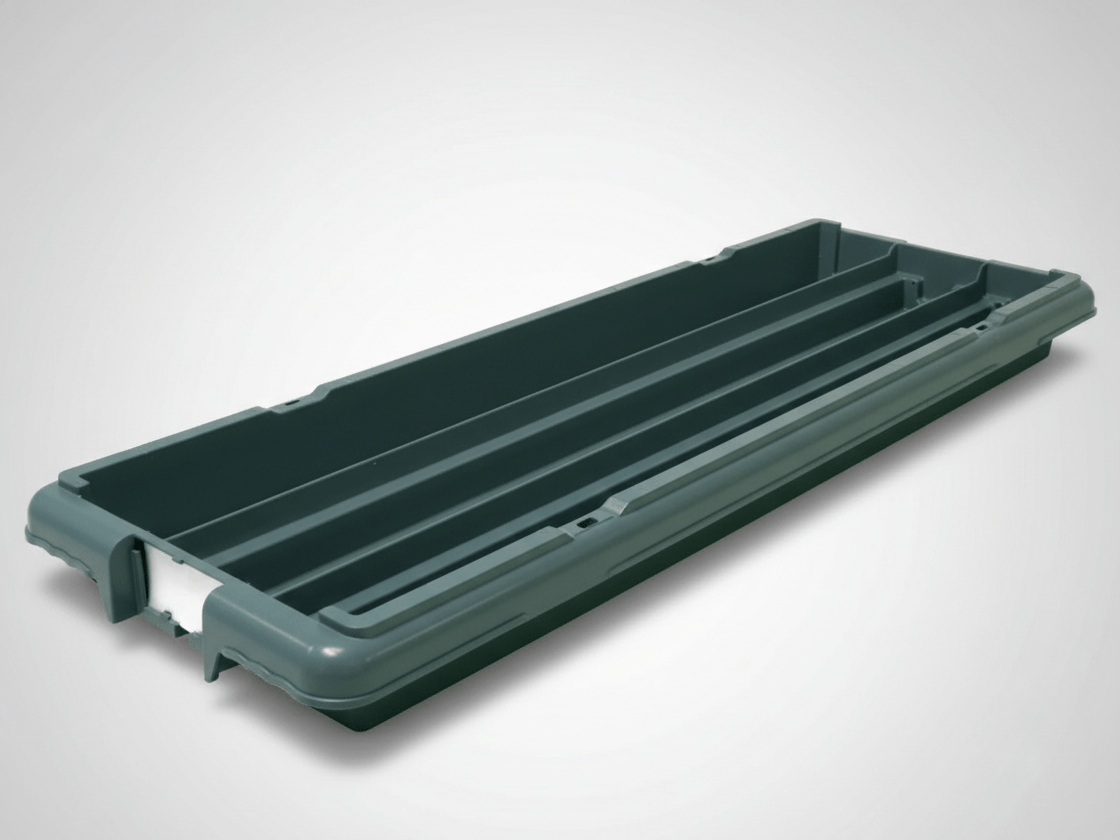

CoreTech Core Trays allow easy stowing and removal of core. Featuring a 1050mm tray bed length, internal finger grooves, and integrated handles at both ends, this is the first geotechnical core tray to align with WHS manual handling guidelines, significantly reducing the risk of strain and injury on site.
Environmentally Responsible, No Compromises
Chemically resistant to sulphides and tested by ExcelPlas to withstand more than 25 years of sun exposure, the CoreTech tray is robust and dependable in Australia’s harsh outdoor environments.
Seamless Asset Management

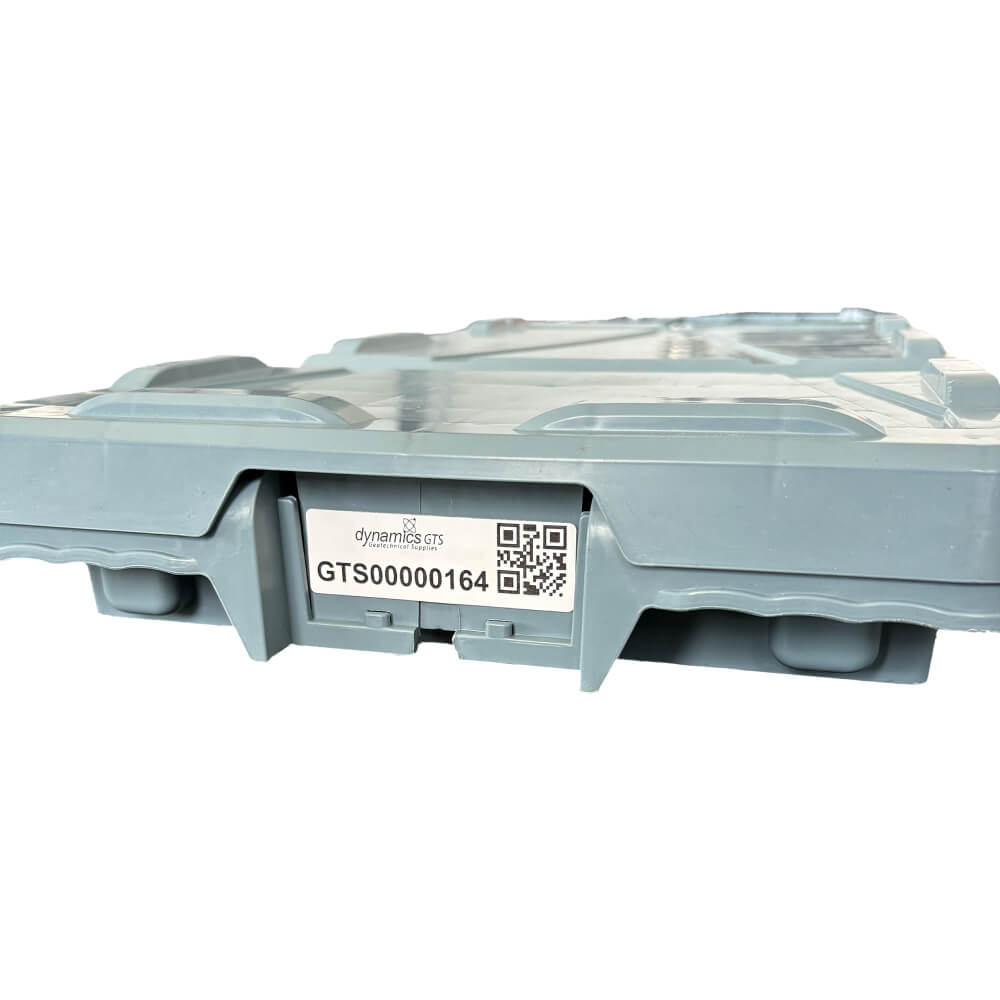

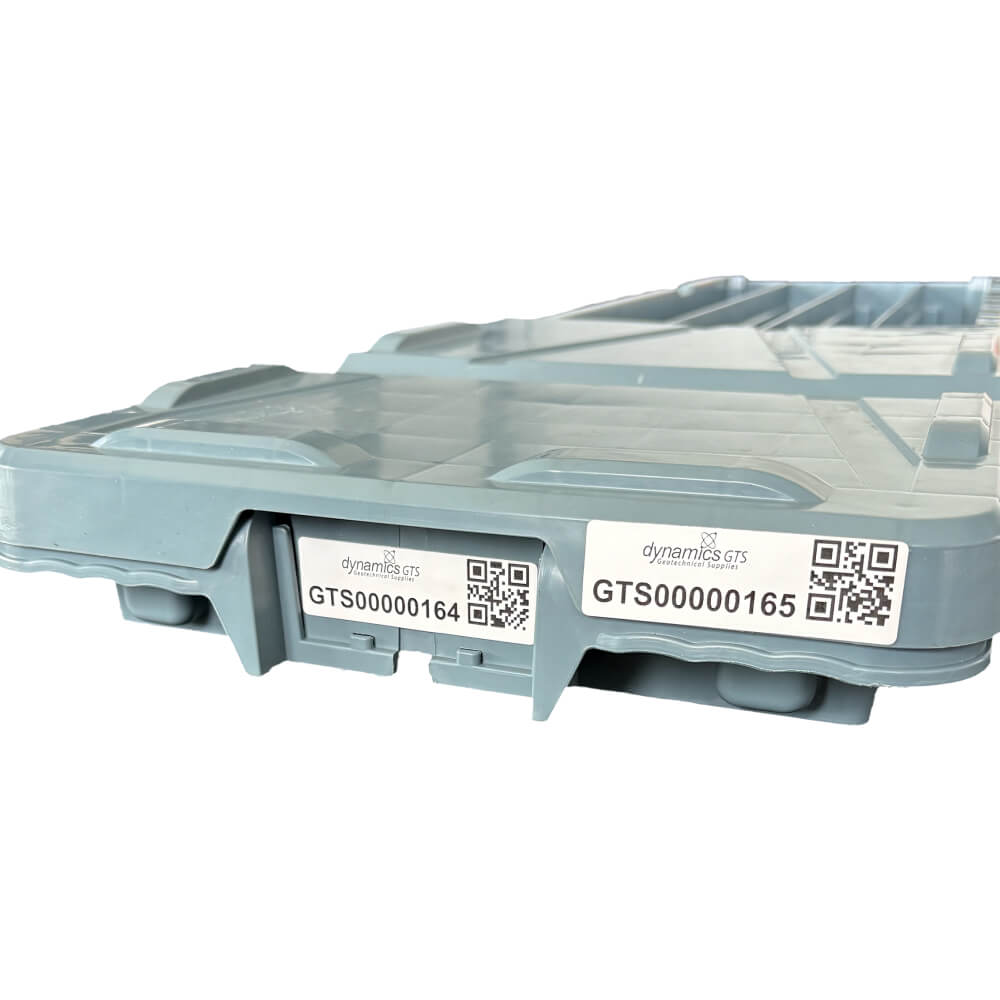

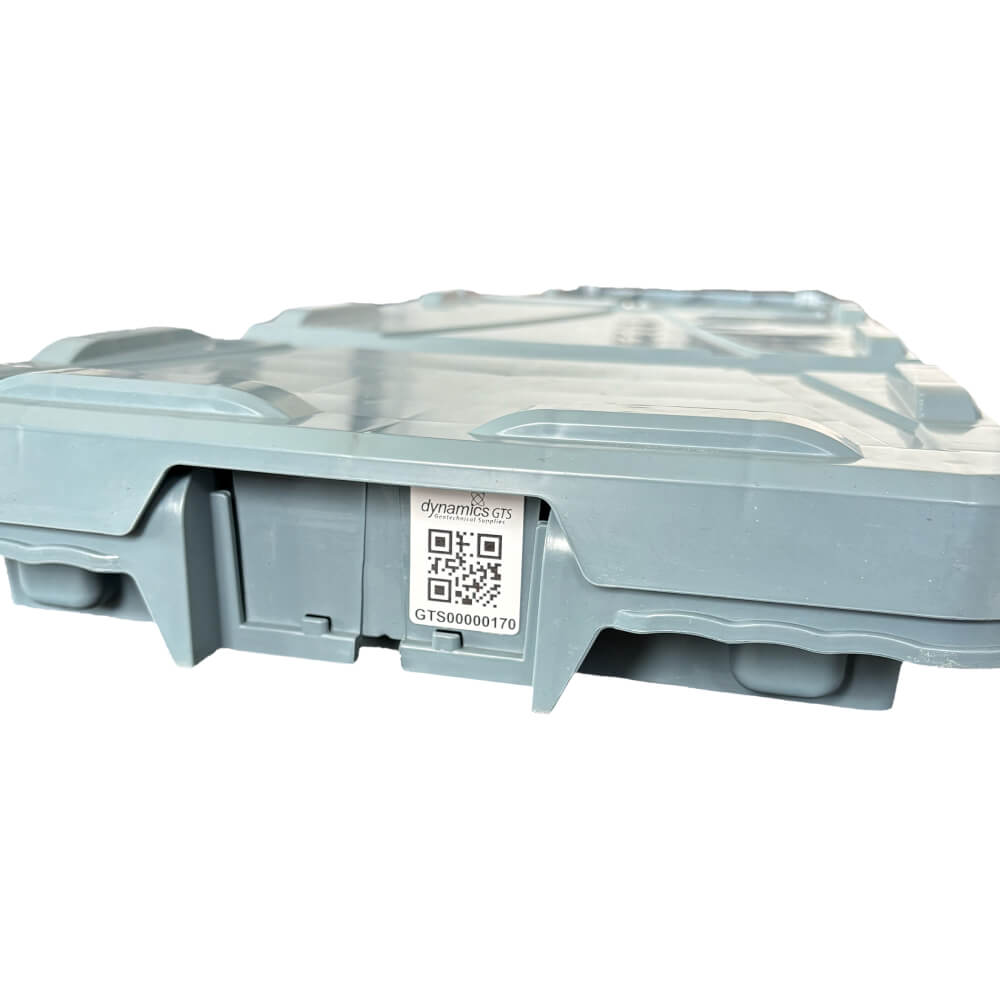

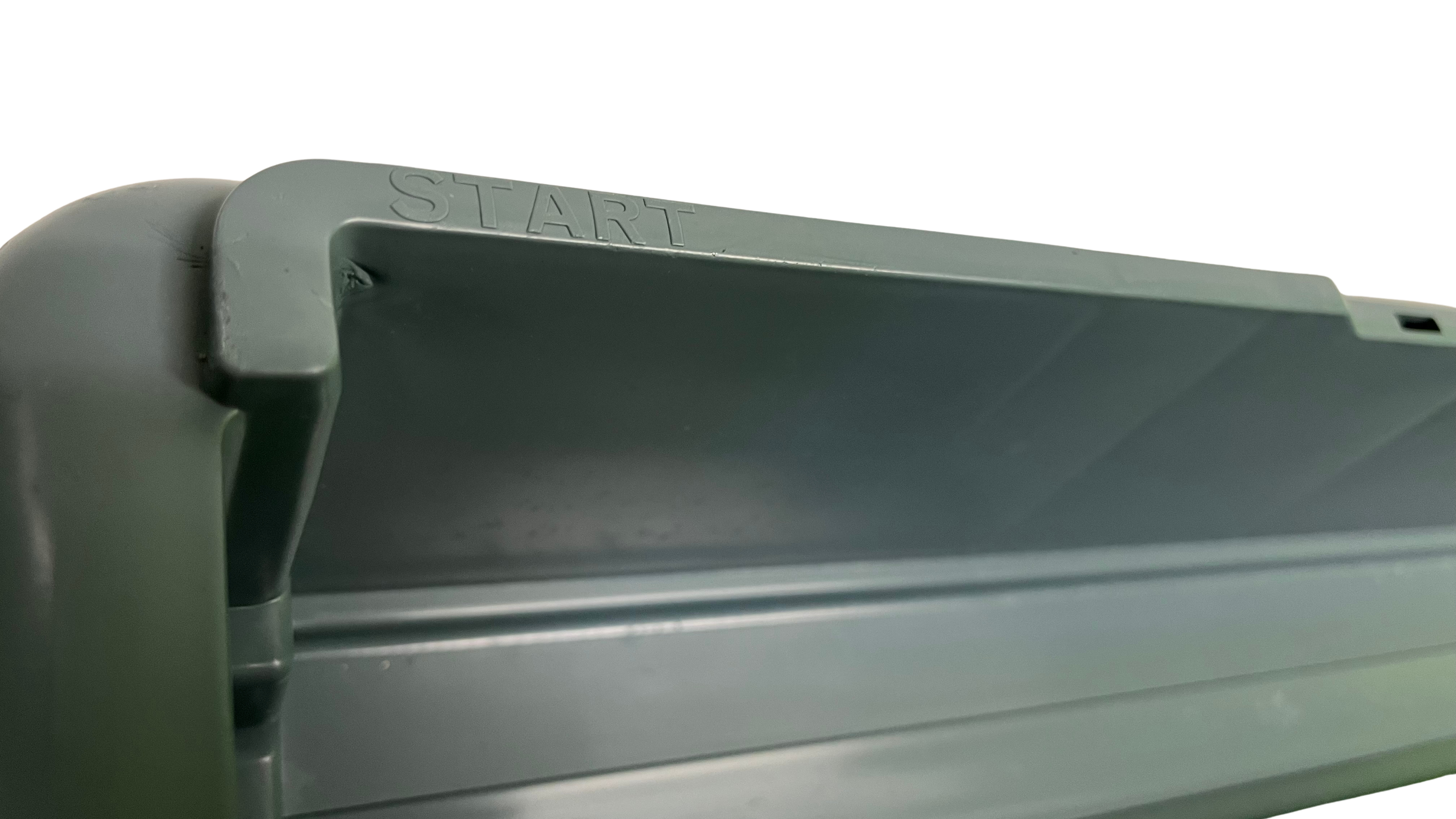

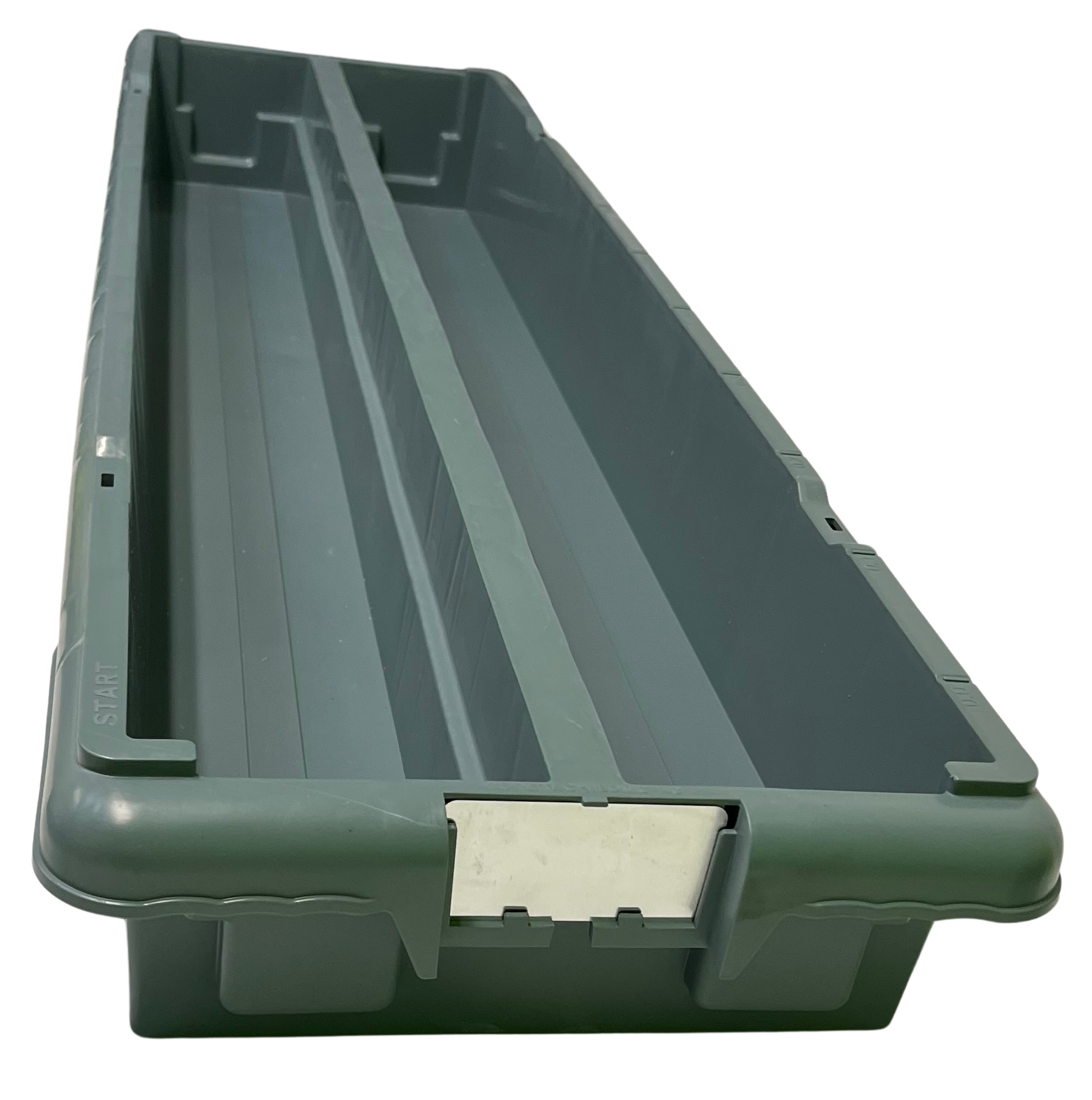

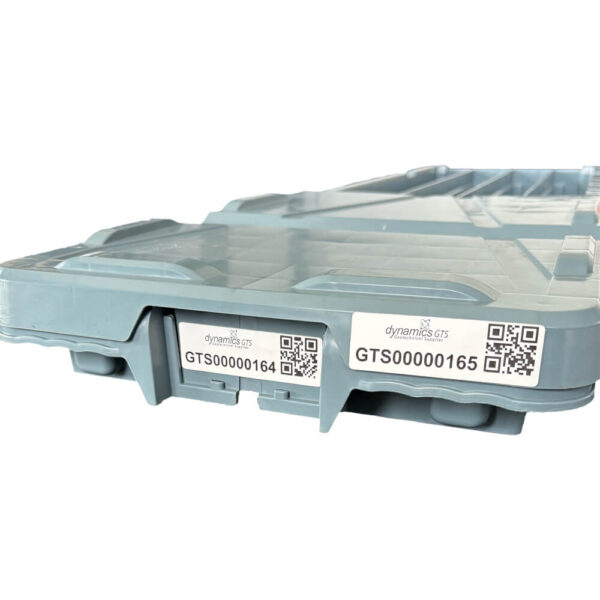

CoreTech trays support optional integration of RFID/NFC tags and QR Codes for digital tracking and inventory control. For enhanced efficiency, each tray features start and end measurement indicators along the sides and 100mm increment notches for fast visual reference during core logging.

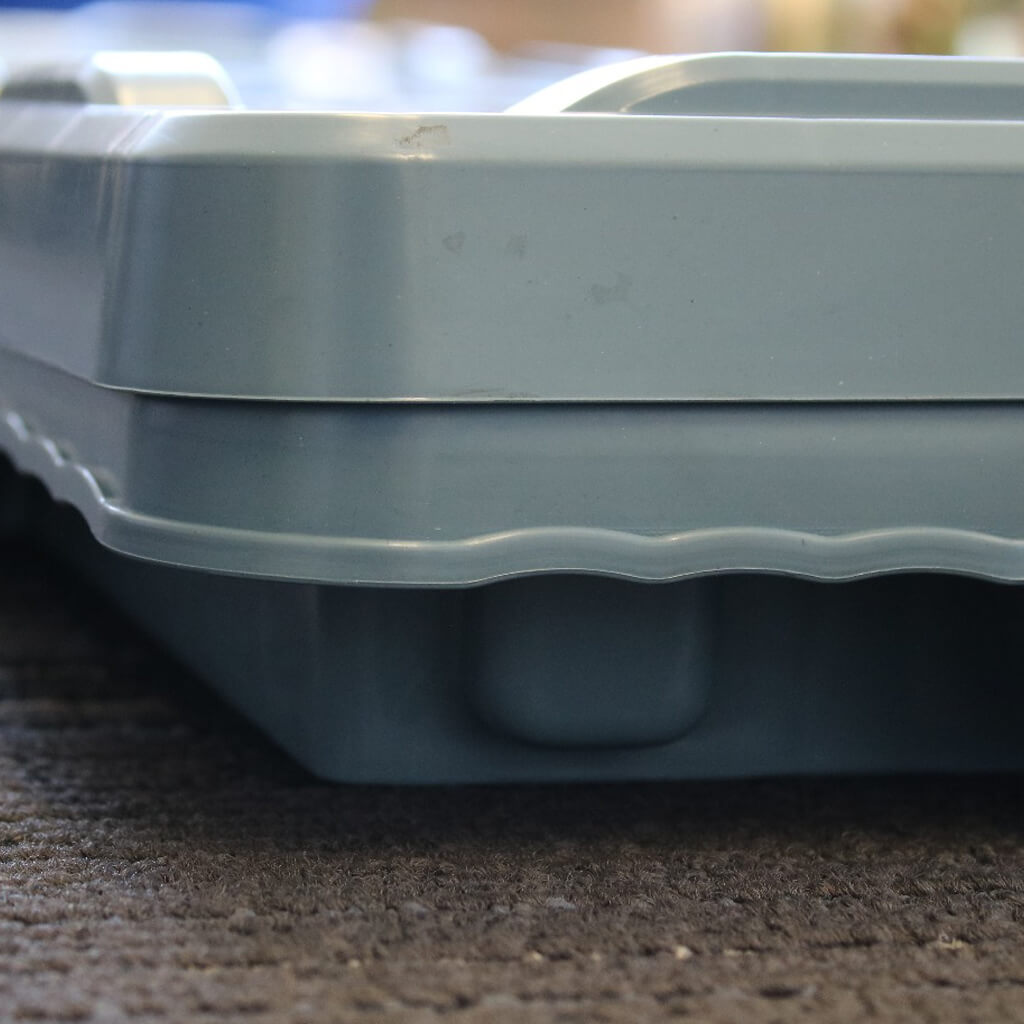

Non-Slip Stacking

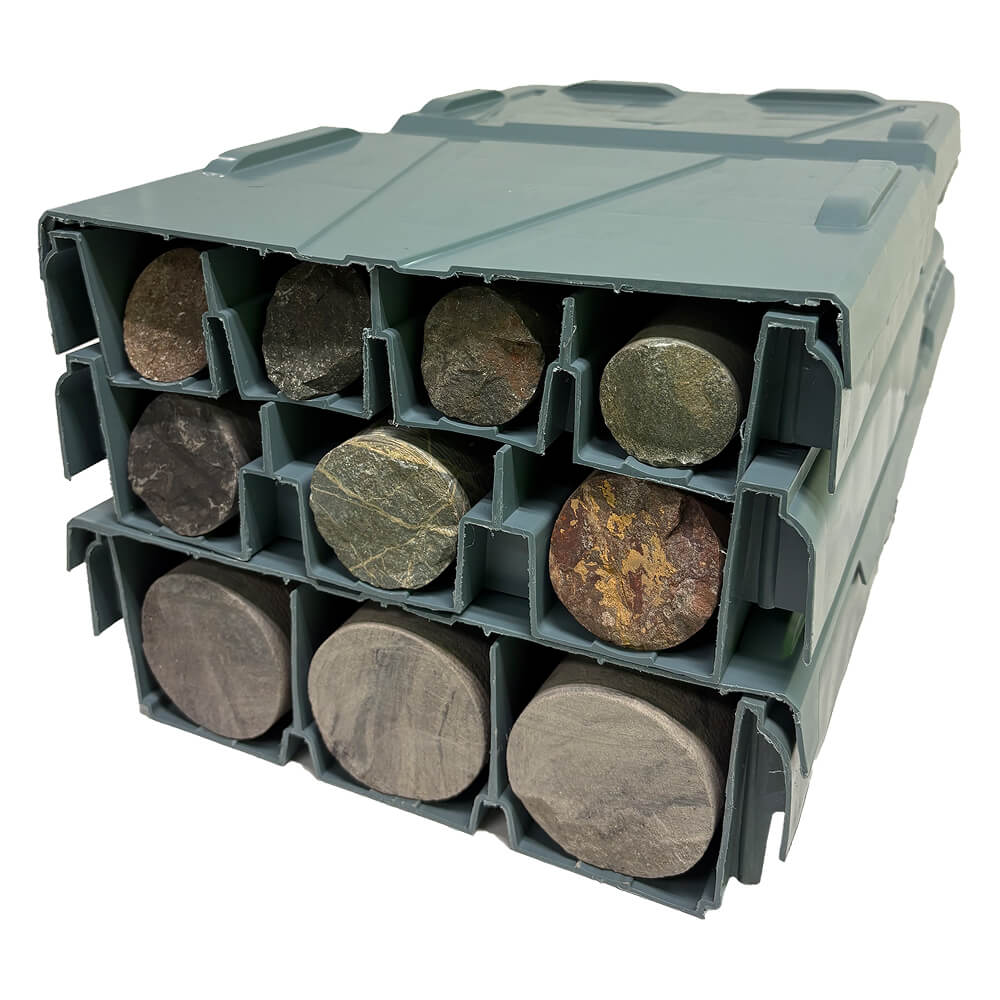

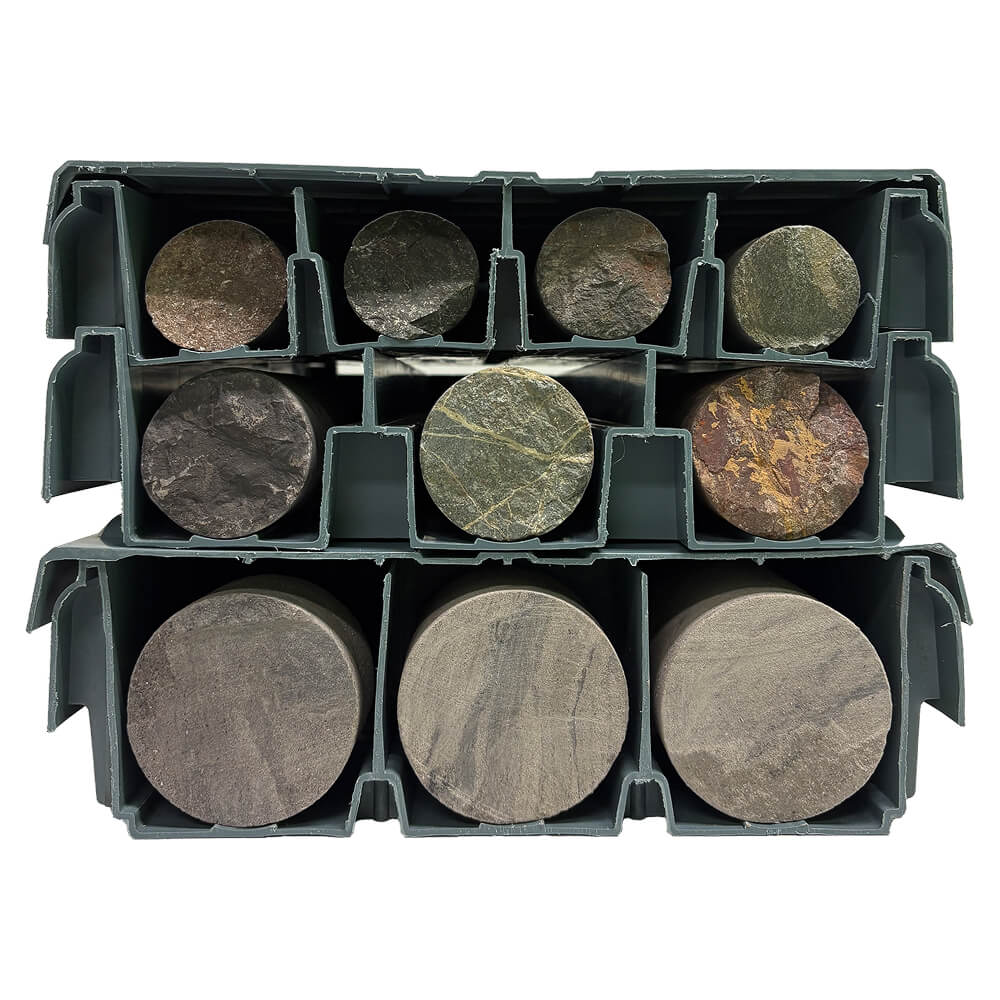

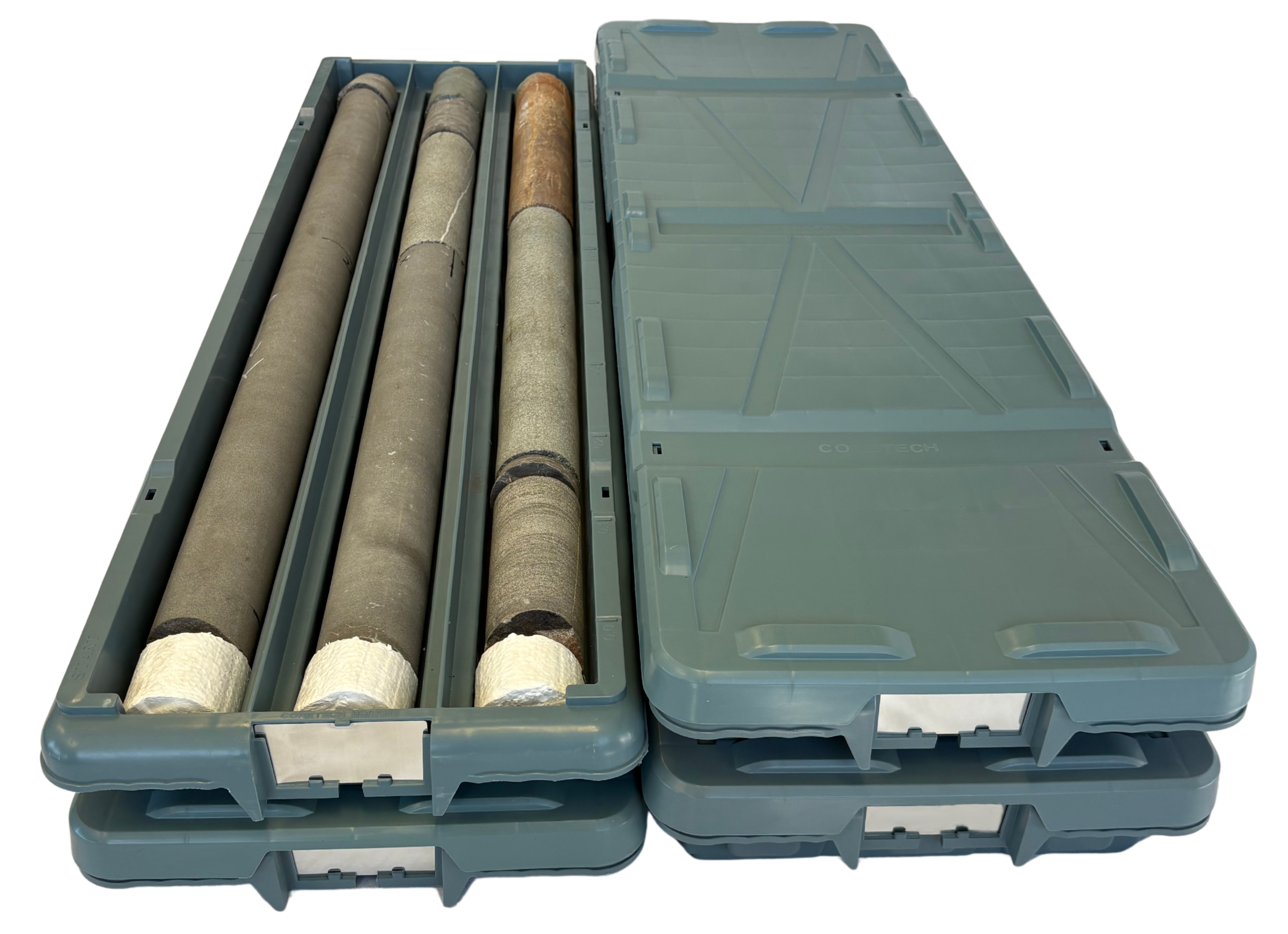

A flat-bottomed base allows for safe stacking on roller racking systems or in core libraries, while reinforced grooves accommodate ratchet straps and eye holes allow for secure fastening with cable ties during transport.
From Our Director
Kevin Dormer is managing director of Dynamics GTS and stands as a proud advocate of the revolutionary CoreTech product line-up. In this short video, Kevin showcases how the CoreTech Core Tray can transform your operational efficiency and safety.

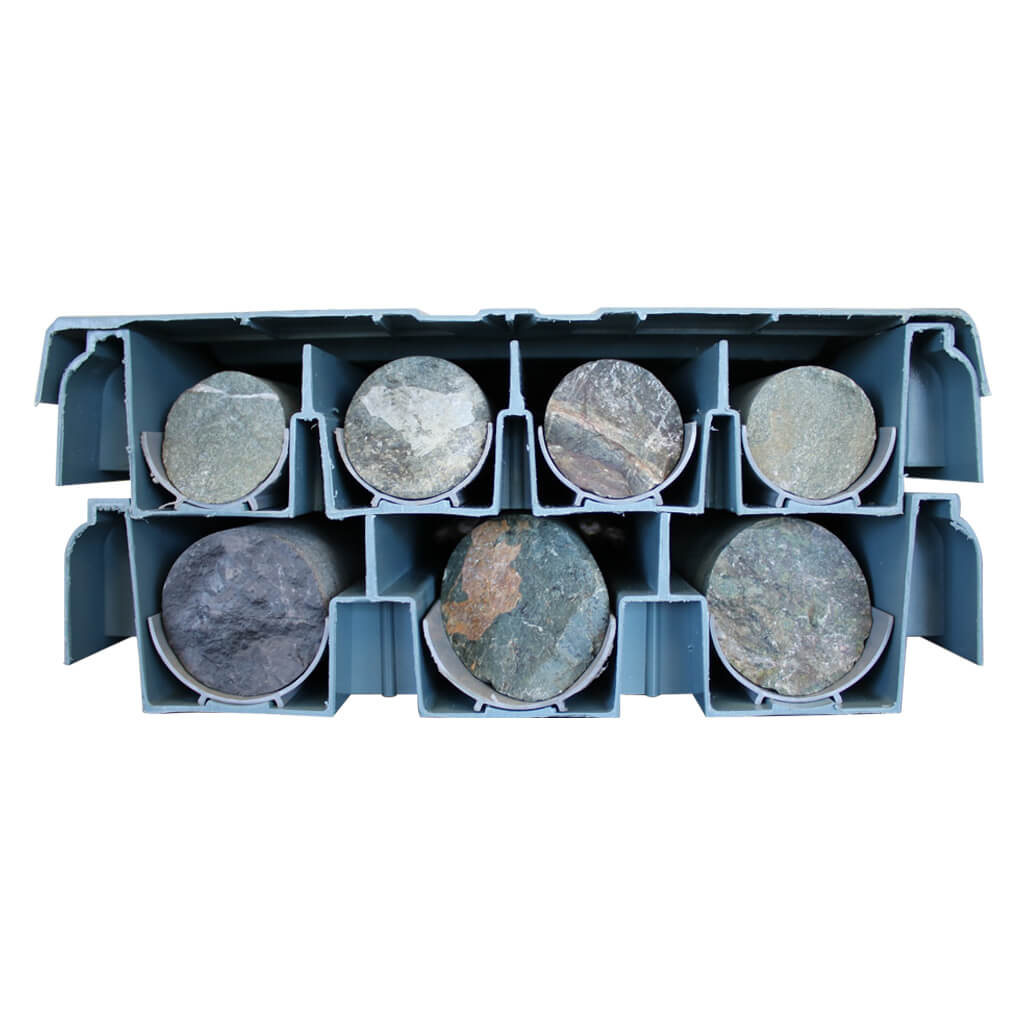

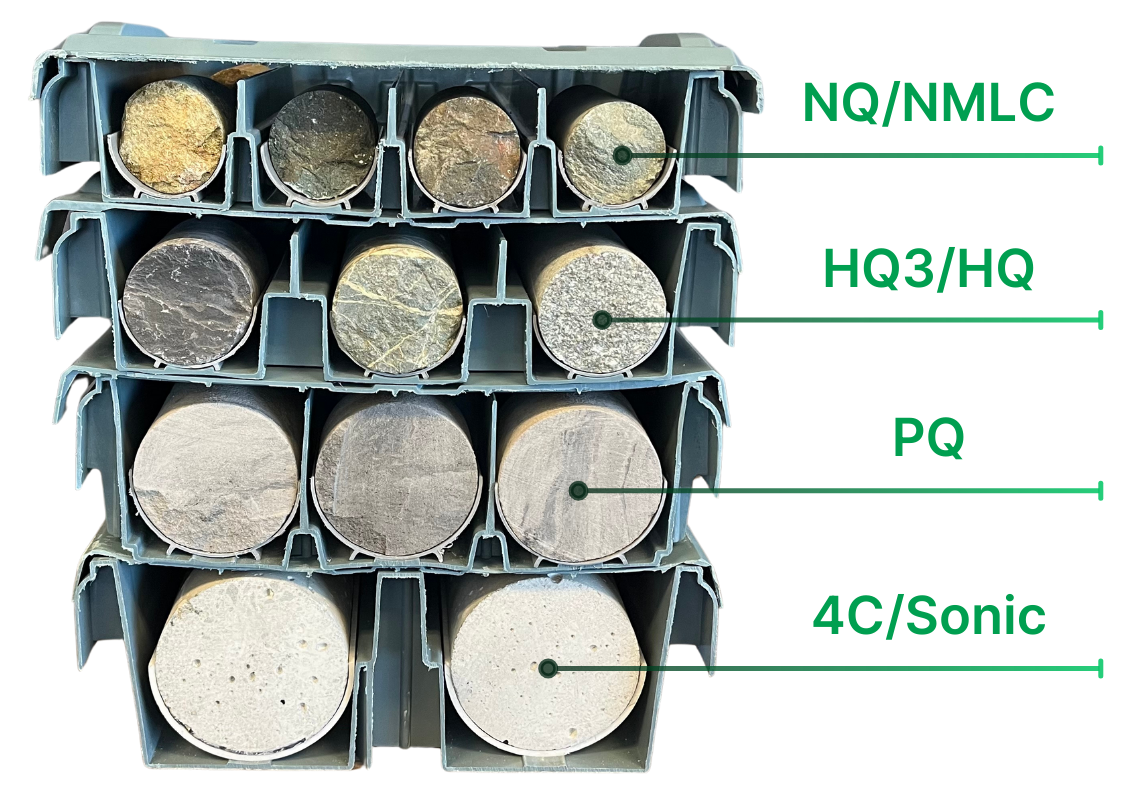

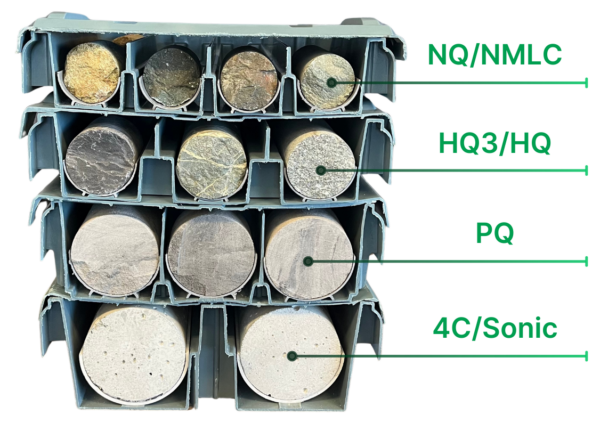

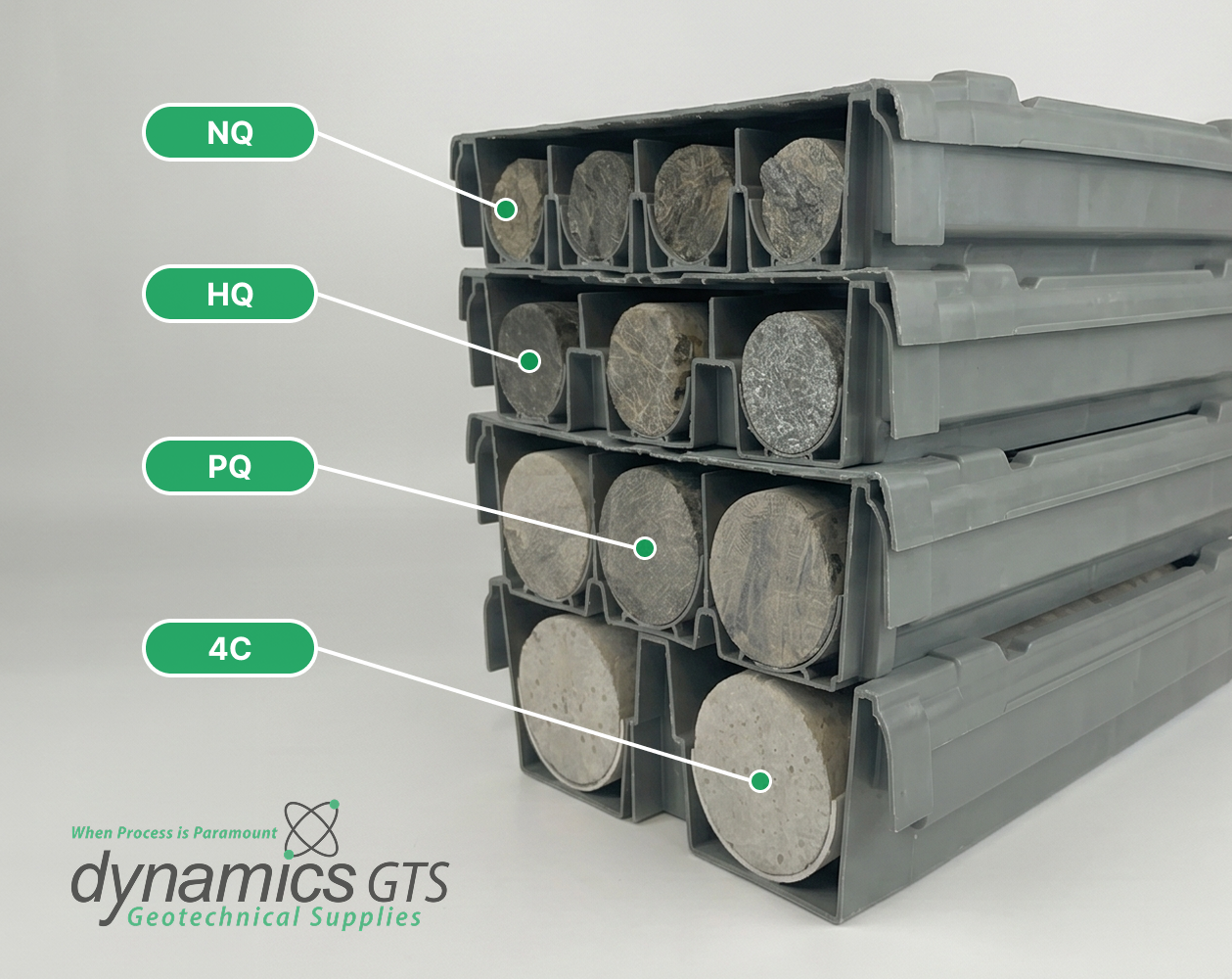

Sizing Table
| Product | Core Rows | Item Weight | Item Weight | QTY on Pallet | Pallet Dimensions | Pallet Weight |
|---|---|---|---|---|---|---|

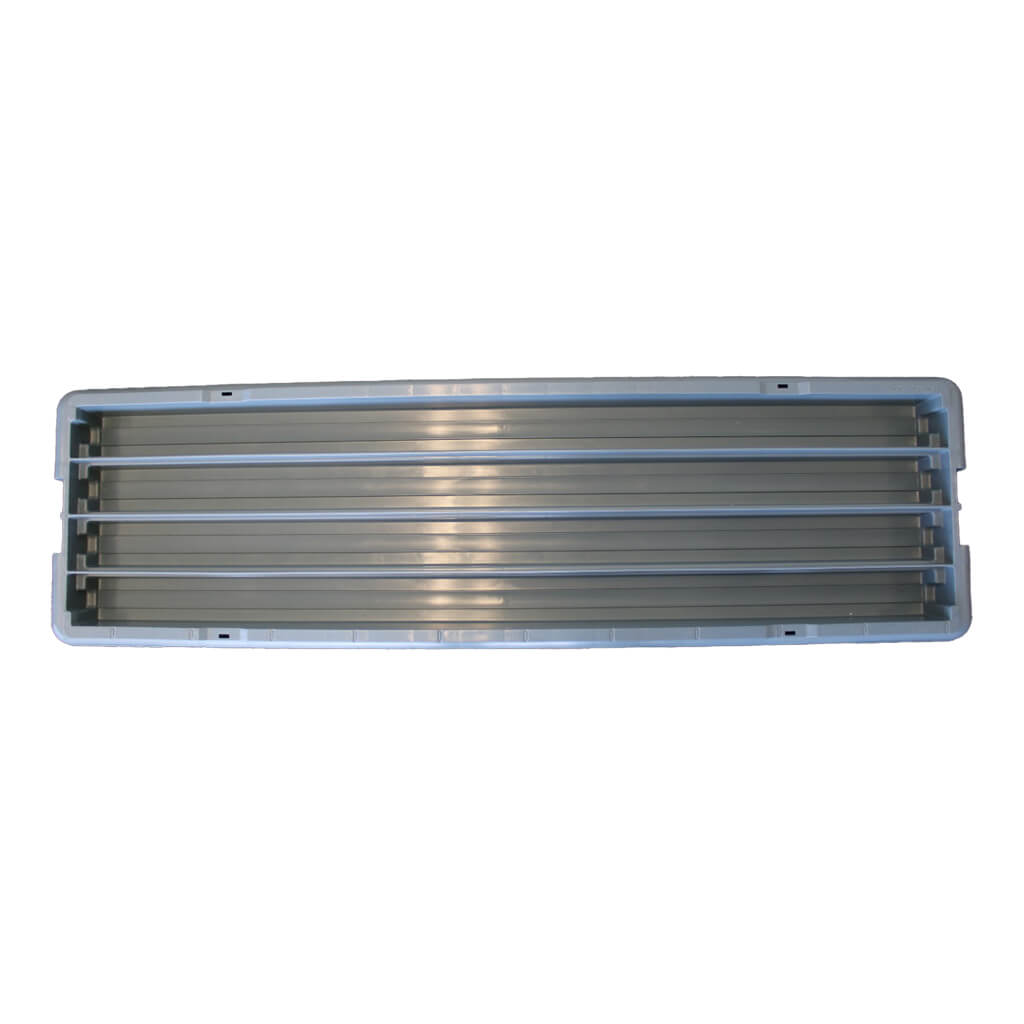

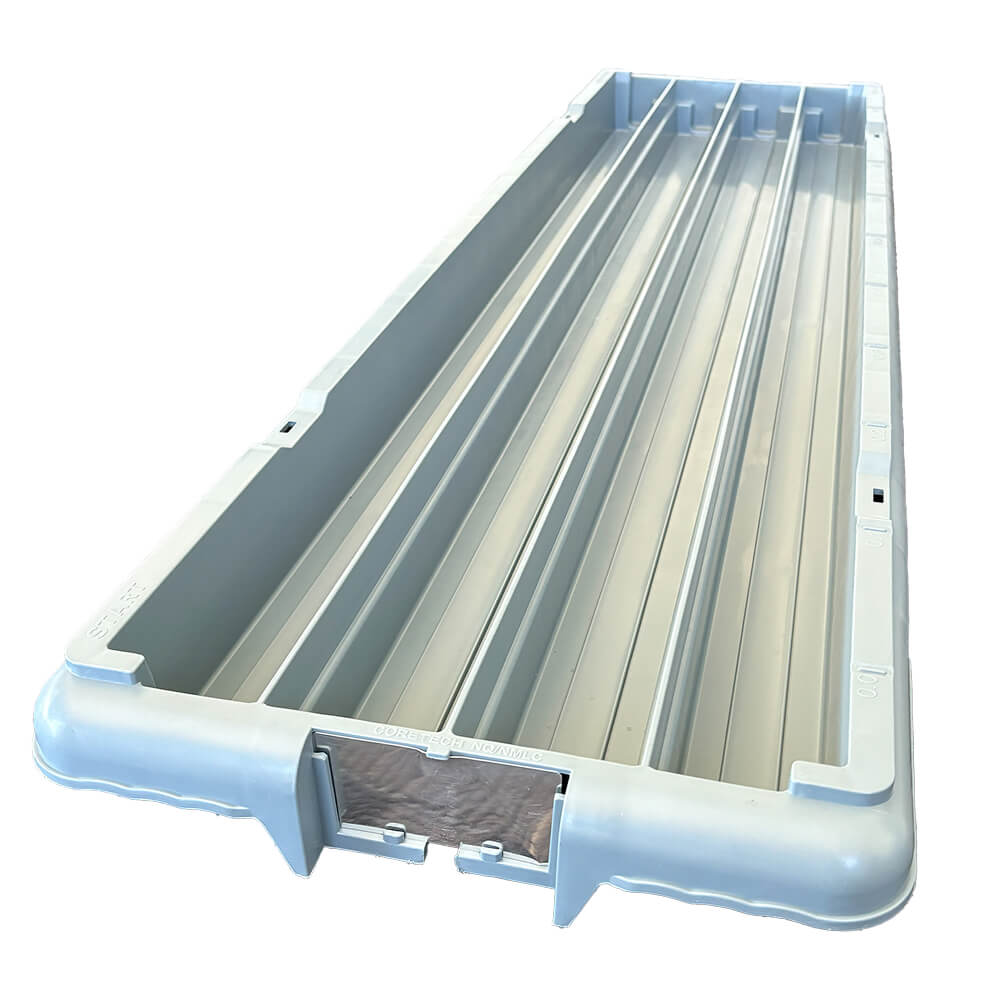

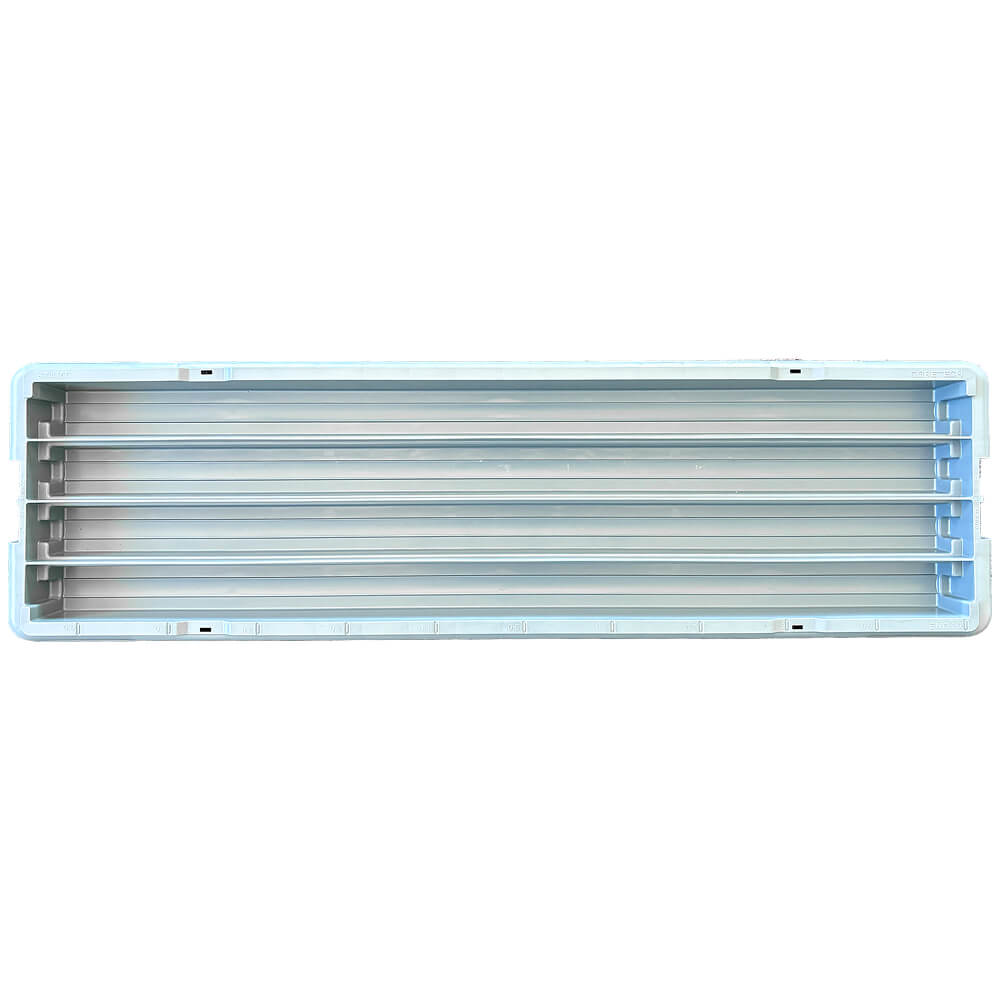

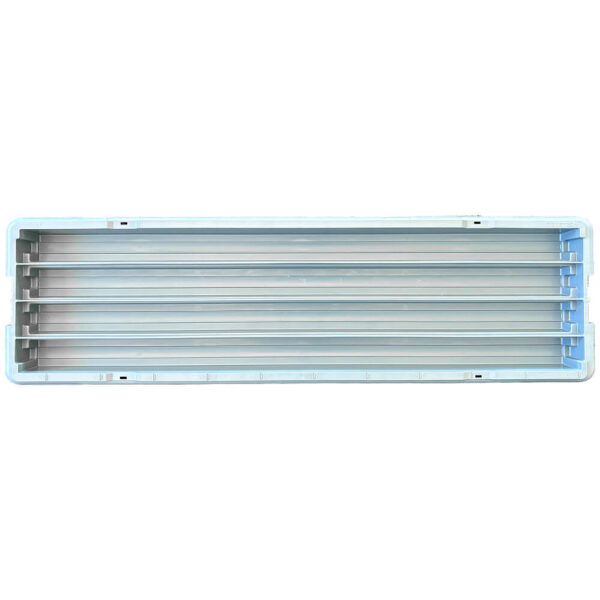

| NQ/NMLC | 4 | 1136 x 328 x 66mm | 2.1kg | 105 | 1200 x 1200 x 2300mm | 240kg |

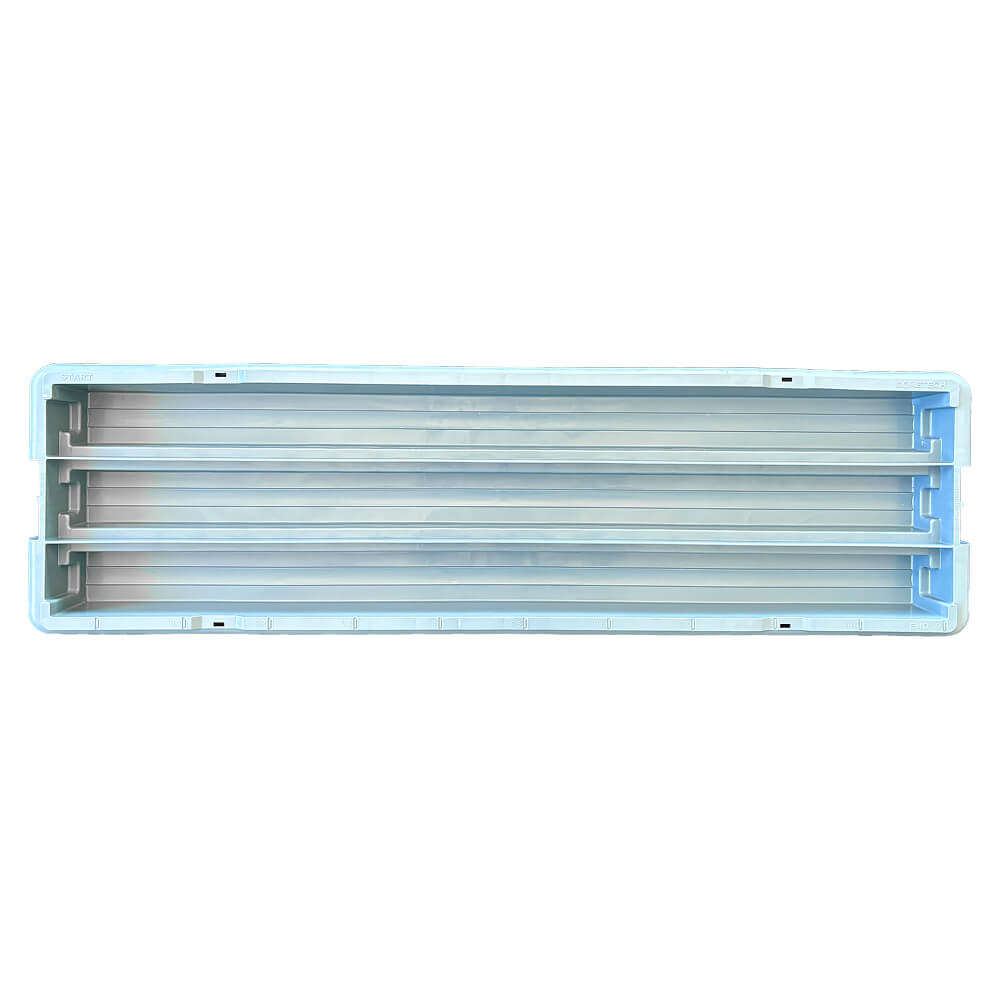

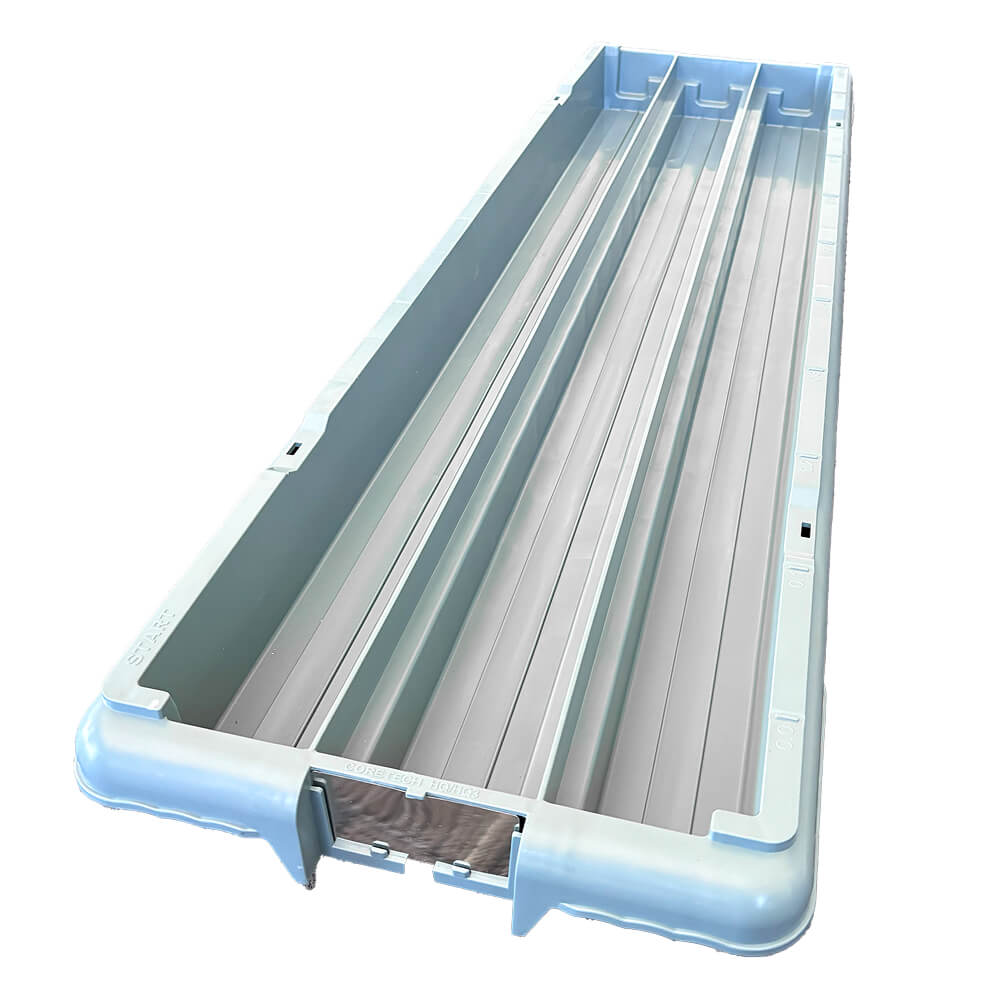

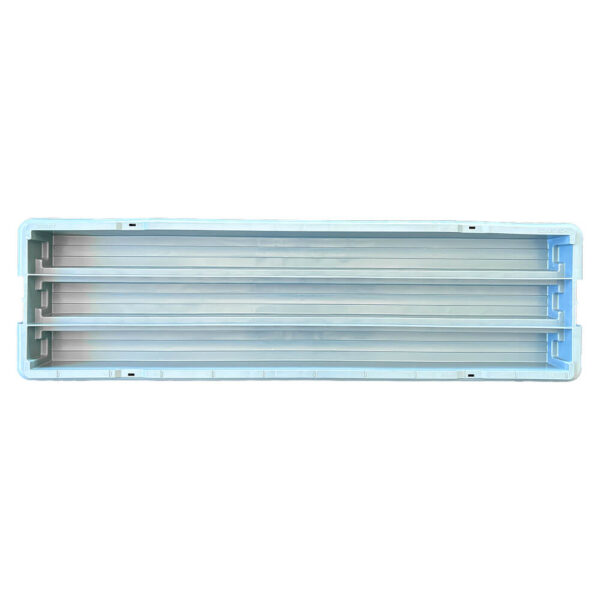

| HQ3/HQ | 3 | 1136 x 328 x 77mm | 2.1kg | 93 | 1200 x 1200 x 2300mm | 220kg |

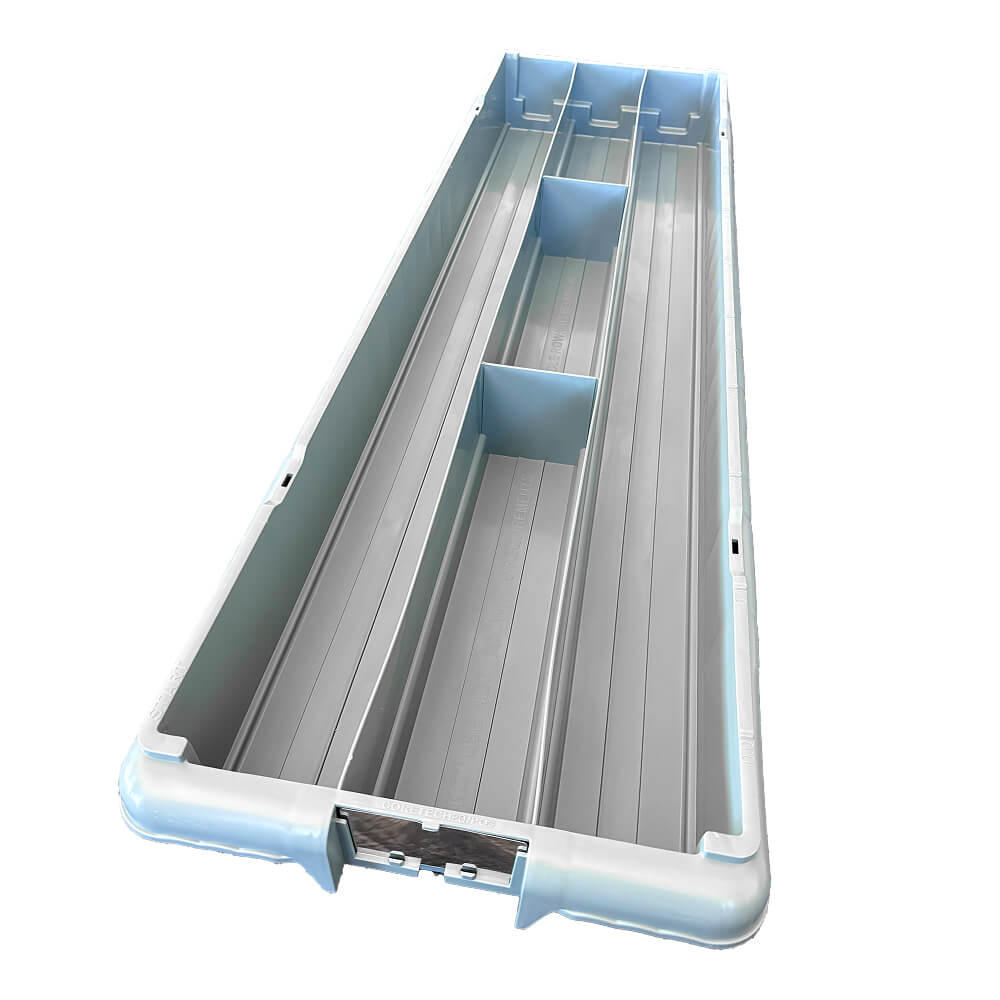

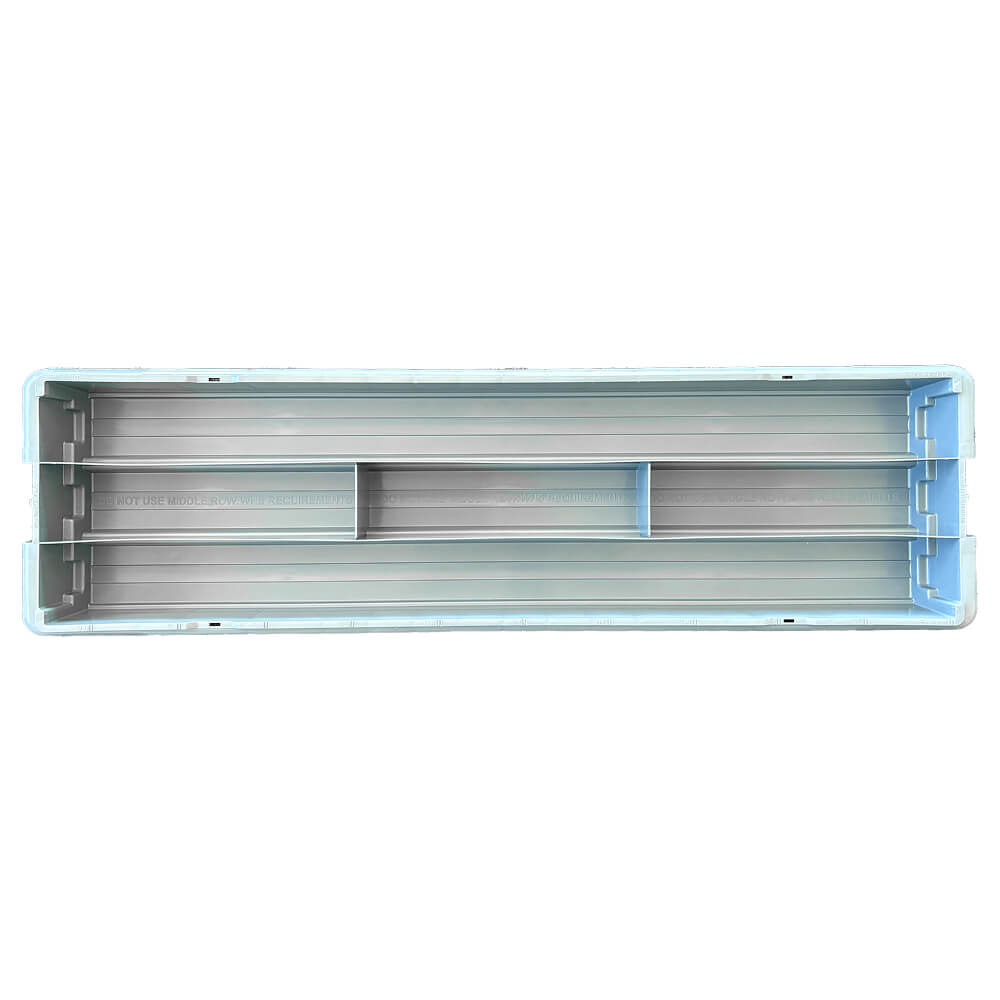

| PQ | 3 | 1136 x 328 x 99mm | 2.1kg | 72 | 1100 x 1100 x 2300mm | 170kg |

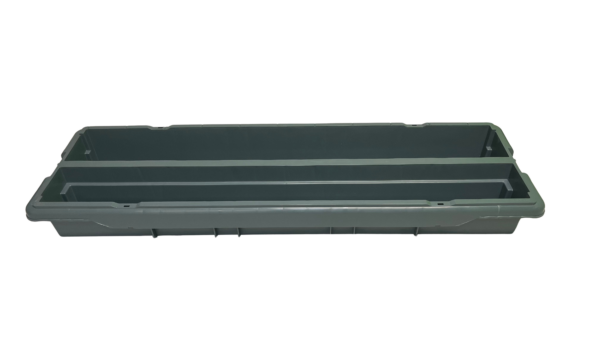

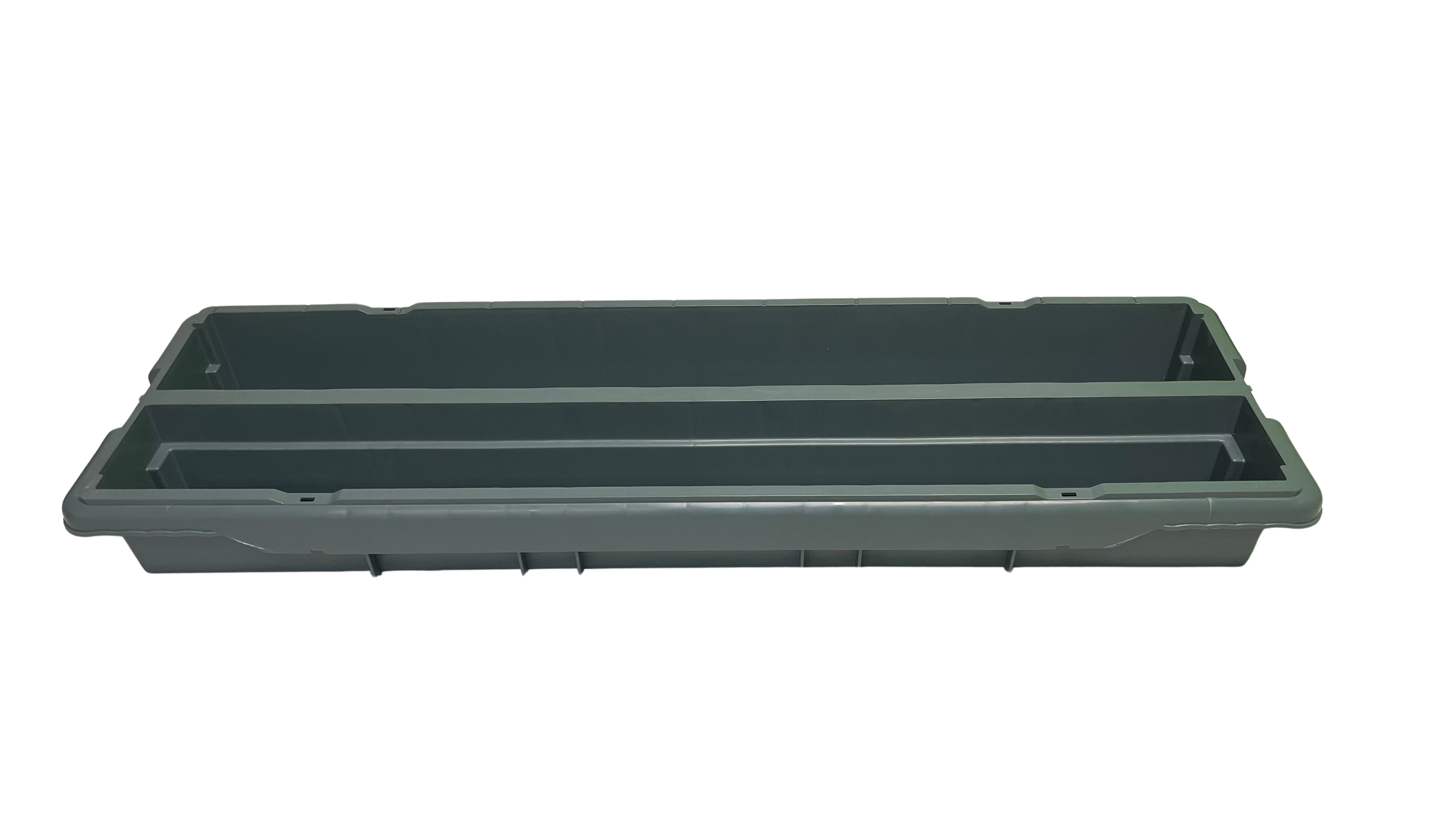

| 4C/Sonic | 2 | 1136 x 328 x 113mm | 2.7kg | 63 | 1200 x 1200 x 2300mm | 190kg |
Please note: Discoverer core trays (not geotechnical specific) and accessories are available upon request, please contact sales department.
Additional information

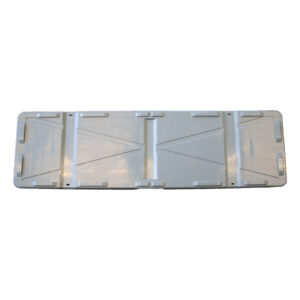

| Variations | CTC-NQ4R-MEL: CoreTech®️ Core Tray NQ/NMLC (4 Row), CTC-HQ3R-MEL: CoreTech®️ Core Tray HQ3/HQ (3 Row), CTC-PQ3R-MEL: CoreTech®️ Core Tray PQ (3 Row), CTC-4C2R-MEL: CoreTech®️ Core Tray 4C/Sonic (2 Row), CTC-LD-GYM: CoreTech Core Tray Lid suits all NQ/HQ/PQ/4C, CT-Q4030-2-GYM: Core Tray- QR Code 40×30 1000units, CT-Q4030-1-GYM: Core Tray- QR Code 40×30 500units, CT-Q7535-2-GYM: Core Tray- QR Code 75×35 1000units, CT-Q7535-1-GYM: Core Tray- QR Code 75×35 500units, ALI-CT-MEL: Aluminum ID Tag 90 x 44 x 0.2mm 100/Pack |
|---|
